Specifications:

Compatibility: Mindray T5/T8 machine

Category: EtCO2

Certifications: FDA, CE, ISO EN , ISO13485, TUV, RoHS Compliant.

Latex-free: Yes

Sterile: No

Warranty: 3 months

Weight: 0.8lb

Packaging Type: Bag

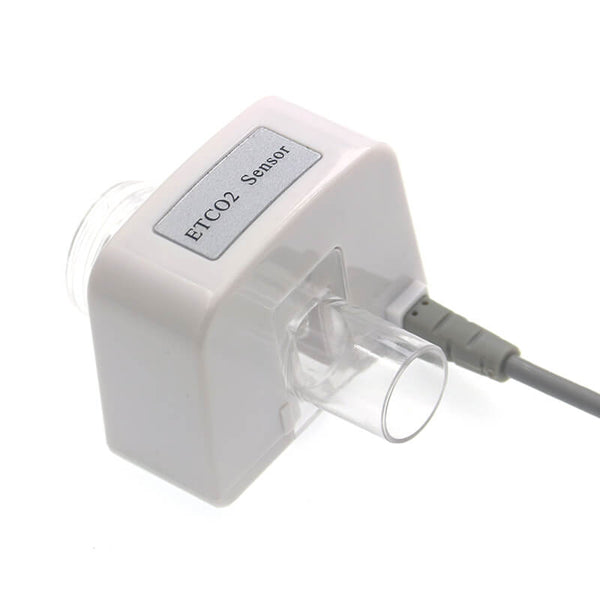

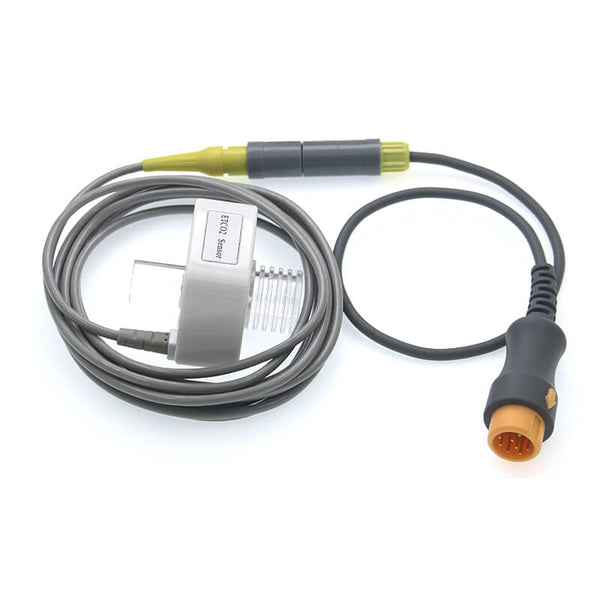

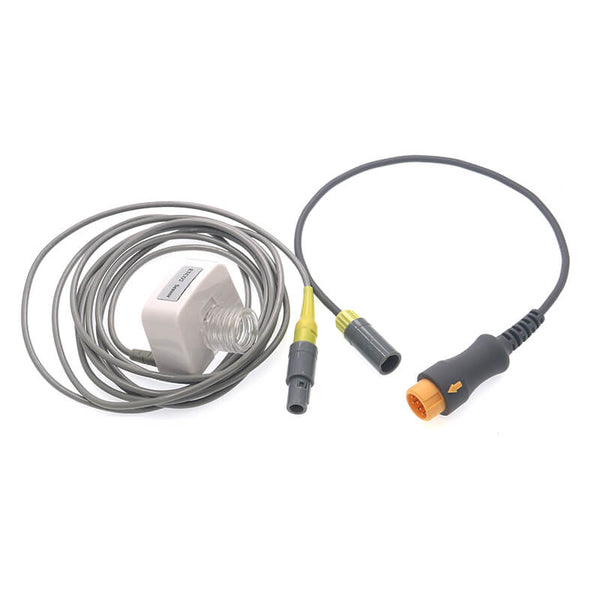

Packaging Included: 1 x ETCO2 Sensor for Mindray.
Product Features:

Principle of Operation Non-dispersive infrared(NDIR), dual wavelength, no moving parts

Initialization Time Capnogram displayed in less than 5 seconds,full specifications within 2 minutes

CO2 Measurement Range 0 – 114 mmHg, 0 – 15 %, 0 – 15.2 kPa(760mmHg)

Rise Time Less than 60 ms - Adult Reusable or Single-Patient-Use Airway Adapter

Less than 60 ms - Infant Reusable or Single-Patient-Use Airway Adapter

CO2 Resolution 0.1mmHg 0 to 59 mmHg

0.25 mmHg 60 to 114mmHg

CO2 Accuracy 0 – 40mmHg ±2 mmHg

41 – 76 mmHg ±5% of reading

77 – 114 mmHg ±8% of reading

Above 80 BPM ±12% of reading

CO2 Stability Short term drift: Drift over four hours shall not exceed 1 mmHg maximum

Long term drift: Accuracy specification will be maintained over a 120-hour period

Sampling Frequency 100 Hz

Respiration Rate Range 2 to 150 Breaths Per Minute (BPM)

Respiration Rate Accuracy ±1 breath

Compensations (Supplied)

Barometric pressure: 400 mmHg to 800 mmHg

Operator selectable O2, N2O, He and agent compensation Calibration No routine user calibration required. An airway adapter zero is required when changing

Airway Adapters Single-patient-use or reusable, < 5 cc dead space (adult), < 1 cc dead space infant

Voltage Requirements 5.0 VDC ±5%

Power Consumption 1.2Watts typical (Steady State)

Up to 1.8 Watts maximum on power up (Warm up)

Interconnection

(The RS232 connector version is also provided)

Standard -  Redel 8-pin plastic connector

Pin out:

1. VA 5.0VDC
2. Shield Shield
3. DGND Digital return
4. VSRC 5.0VDC
5. TxD Serial data from Sensor
6. RxD Serial data from Host
7. AGND Analog return
8. SYNC Unused

Data Interface RS232 , bi-directional, 19200 baud rate, standard N-8-1.

Data Output CO2 gas concentration(mmHg), End-tidal CO2, Inspired CO2, Respiratory Rate. Gas and barometric pressure compensated when supplied by host.

Temperature and Humidity Operating: 0 to 45℃, 10 to 90% RH, non-condensing

Storage: -40 to 70℃, <90% RH, non-condensing Water Resistance IPX4 – Splash-proof (sensor head only)
