Description
Specifications:
Proximal Connector: Neonate Soft.
Compatibility: Bionet BM3, BM5, Monitors that require a large connector with 1 opening on the side. Please note that Bionet BM3 monitors can also have a smaller connector with a guide on the side and no opening.
Accuracy: SpO2)(±1S.D.); 90-100%±2 digits, 70-89% ± 3 digits, 0-69% unspecified); Pulse Rate: ±2 bpm .
Spo2 Range: 50-100% .
Spo2 Accuracy: 85-100%: ±1%; 70-84%: ±2%; 50-69%: ±3%
Pulse Rate Range: 25-250BPM.
Pulse Rate Accuracy: ±2 BPM.
Humidity: Operating/Storage/Transportation 0% to 80% non-condensing Altitude Hyperbaric Pressure 86kPa - 106kPa.
Storage/Transportation: 23℉-104℉.
Operating Temperature: 32℉~+104℉
Certifications: FDA, CE, ISO EN , ISO13485, TUV, RoHS Compliant.
Cable Color: Gray.
Cable Diameter: 4 splitting to 2.5*2 mm.
Cable Length: 9.8 ft.
Cable Material: TPU Jacket.
Category: SpO2.
Distal Connector: Male, 6-pin, round, angled connector, keyed.
Patient Size: Neonate (<6.6lb).
SpO2 Technology: Nellcor OxiSmart.
Warranty: 12 months.
Weight: 0.7lb.
Packaging Type: Bag.

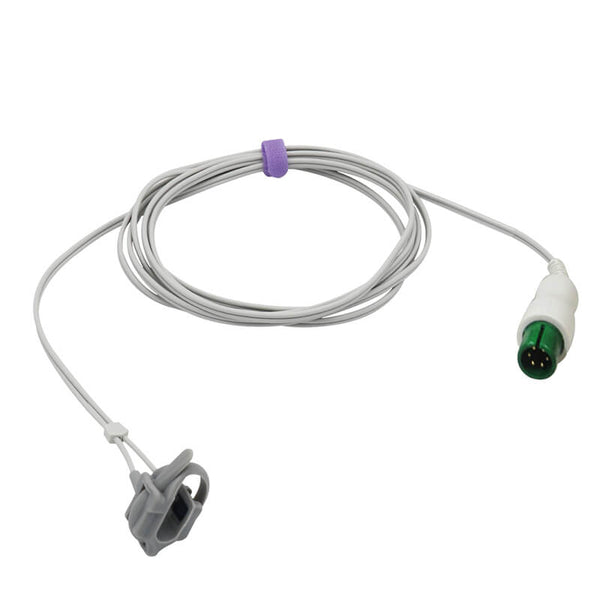

Packaging Included: 1 x Neonate Soft Spo2 Sensor for Bionet.
Specifications:
Proximal Connector: Neonate Soft.
Compatibility: Bionet BM3, BM5, Monitors that require a large connector with 1 opening on the side. Please note that Bionet BM3 monitors can also have a smaller connector with a guide on the side and no opening.
Accuracy: SpO2)(±1S.D.); 90-100%±2 digits, 70-89% ± 3 digits, 0-69% unspecified); Pulse Rate: ±2 bpm .
Spo2 Range: 50-100% .
Spo2 Accuracy: 85-100%: ±1%; 70-84%: ±2%; 50-69%: ±3%
Pulse Rate Range: 25-250BPM.
Pulse Rate Accuracy: ±2 BPM.
Humidity: Operating/Storage/Transportation 0% to 80% non-condensing Altitude Hyperbaric Pressure 86kPa - 106kPa.
Storage/Transportation: 23℉-104℉.
Operating Temperature: 32℉~+104℉
Certifications: FDA, CE, ISO EN , ISO13485, TUV, RoHS Compliant.
Cable Color: Gray.
Cable Diameter: 4 splitting to 2.5*2 mm.
Cable Length: 9.8 ft.
Cable Material: TPU Jacket.
Category: SpO2.
Distal Connector: Male, 6-pin, round, angled connector, keyed.
Patient Size: Neonate (<6.6lb).
SpO2 Technology: Nellcor OxiSmart.
Warranty: 12 months.
Weight: 0.7lb.
Packaging Type: Bag.
Packaging Included: 1 x Neonate Soft Spo2 Sensor for Bionet.
