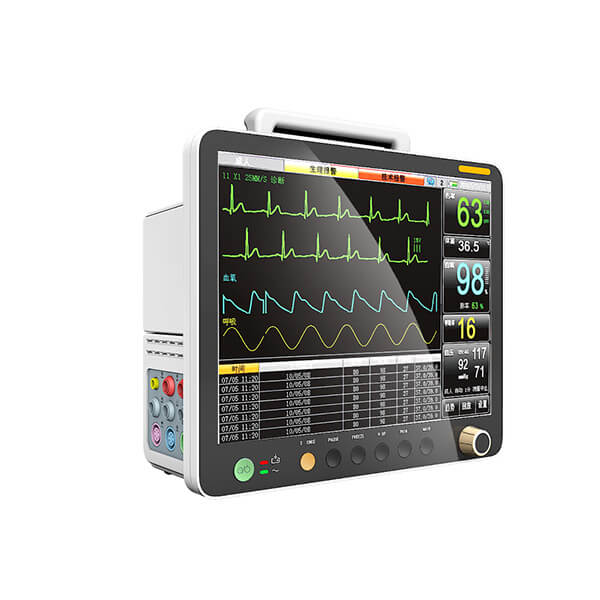

• 10.1'’TFT LCD, suitable for bedside, operation room, ICU, etc

• Ultra thin portable design, thickness of only 52mm

• Capacitive touch screen(optional),support BLE and WIFI

• Support multi- language,English,Chinese etc

• Built-in detachable rechargeable lithium battery(about 4h)

• Muiti-display supported:LCD,HDMI,VGA,and miracast

• Support for vehicle 12V input

• Support USB

ECG

Lead selection: I, II, III, aVR, aVL, aVF, V
Gain:x 0.25mm/mV, x 0.5mm/mV, x 1mm/mV, x 2mm/mV
Measurement and alarm range: 15～300 bpm(Adult) 15～350 bpm(Neonatal)
Resolution: 1 bpm
Alarm accuracy: ± 1 %
ST measurement and alarm range: -2.0 - +2.0mV
Alarm accuracy: ± 10 %
Pacemaker: yes
Sweep speed: 12.5mm/s, 25 mm/s, 50 mm/s
Bandwidth: Diagnostic: 0.05～130 Hz
Monitor: 0.05～40Hz
Surgery: 1～20 Hz

NIBP

Work Mode: Manual, Automatic, Continuous
Unit: mmHg, kPa
Measurement and alarm range:
Adult:  SYS: 40 ～ 280 mmHg
           DIA: 10 ～ 225 mmHg
           MEAN: 20 ～ 240 mmHg
Pediatric: SYS: 40 ～ 220 mmHg
                DIA: 10 ～ 160 mmHg
                MEAN: 20 ～ 170 mmHg
Neonatal: SYS: 40 ～ 135 mmHg
                DIA: 10 ～ 100 mmHg
                MEAN: 20 ～ 110 mmHg
Resolution: 1 mmHg
Accuracy: ±5 mmHg port upgrade via network

RESP

Measurement and alarm range: 0～150 rpm
Resolution: 1 rpm
Measurement accuracy: ±2 %

SpO2

Measurement and alarm range: 0 ～ 100%
Resolution: 1%
Measurement accuracy: 70%～100%: ±2%;
0%～69%: unspecified
Measurement and alarm range: 20 ～ 250 bpm
Resolution: 1 BPM
Measurement accuracy: ±3 bpm

TEMP

Measurement and alarm range: 0 ～ 50℃
Resolution: 0.1 ℃
Accuracy: ±0.1 ℃

OPtional
* Recorder: $73.00
* Central Monitoring System: $55.00
* Single/Double Tube IBP: $199.00
* CO2: $382.00
* WIFI：$73.00
* 12-Channel ECG：$218.00
* Masimo/Nellcor Spo2：$472
* SunTech NIBP：$454.00

Packaging Included:

1. Power Cable x 1 pc

2. Ground Cable x 1 pc

3. User Manual x 1 pc

4. Power Adapter x 1 pc

5. Patient Monitor PM15A x 1 pc
